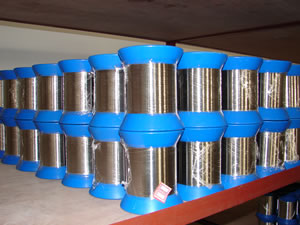

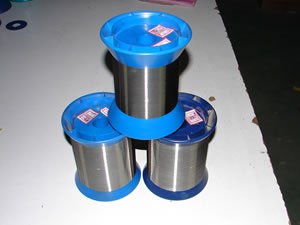

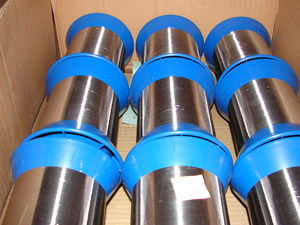

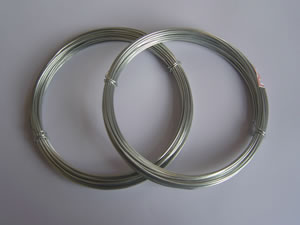

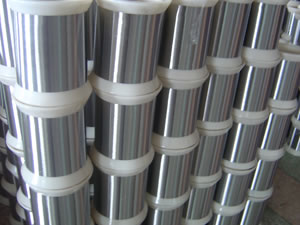

Stainless Steel Wire
Materials for Stainless Steel Wire: 304, 304L, 316, 316L.
Wire Diameter: 5mm to 0.025mm.
Peculiarity: Stainless Steel Wire enjoys many featues, such as wear-resistant, high intensity, small Stretch ability; because the fine wire, oil and ink is easy to pass; Mechanical and chemical Properties of wire mesh is stably, also the dimension definition is stably.

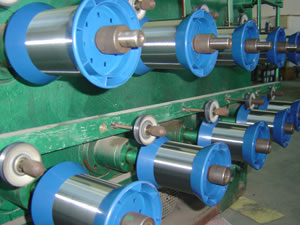

Applications: Stainless Steel Wire is used in wire-drawing, weaving of wire mesh, soft pipe, beam of cabinet, steel wire rope, filter material and equipment, spring, etc.
| Chemical composition of stainless steel wire |
AISI
Grade |
Chemical Composition(%) |
| |
C |
Si |
Mn |
P |
S |
Ni |
Cr |
Mo |
| 304 |
>=0.08 |
>=1.00 |
>=2.00 |
>=0.045 |
>=0.030 |
>8.00~10.50 |
>18.00~20.00 |
- |
| 304H |
>0.08 |
=1.00 |
=2.00 |
=0.045 |
=0.030 |
8.00~10.50 |
18.00~20.00 |
- |
| 304L |
>=0.030 |
>=1.00 |
>=2.00 |
>=0.045 |
>=0.030 |
>9.00~13.50 |
>18.00~20.00 |
- |
| 316 |
=0.045 |
=1.00 |
=2.00 |
=0.045 |
=0.030 |
10.00~14.00 |
10.00~18.00 |
2.00~3.00 |
| 316L |
>=0.030 |
>=1.00 |
>=2.00 |
>=0.045 |
>=0.030 |
>12.00~15.00 |
>16.00~18.00 |
>2.00~3.00 |
| 430 |
=0.12 |
=0.75 |
=1.00 |
=0.040 |
=0.030 |
=0.60 |
16.00~18.00 |
- |
| 430A |
>=0.06 |
>=0.50 |
>=0.50 |
>=0.030 |
>=0.50 |
=0.25 |
>14.00~17.00 |
- |
| Sizes of Stainless Steel Wire |
| Wire Diameter(mm) |
Tolerance(mm) |
Max. Deviation Tolerance (mm) |
| 0.020-0.049 |
+0.002 -0.001 |
0.001 |
| 0.050-0.074 |
±0.002 |
0.002 |
| 0.075-0.089 |
±0.002 |
0.002 |
| 0.090-0.109 |
+0.003 -0.002 |
0.002 |
| 0.110-0.169 |
±0.003 |
0.003 |
| 0.170-0.184 |
±0.004 |
0.004 |
| 0.185-0.199 |
±0.004 |
0.004 |
| 0.200-0.299 |
±0.005 |
0.005 |
| 0.300-0.310 |
±0.006 |
0.006 |
| 0.320-0.499 |
±0.006 |
0.006 |
